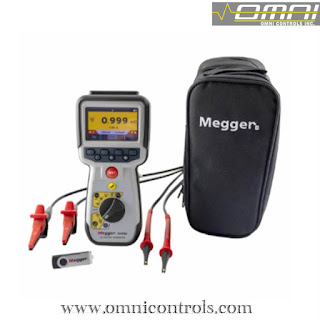

Megger DLRO2 Ducter Handheld 2A Low Resistance Ohmmeter
Buy Online Megger DLRO2 Ducter Handheld 2A Low Resistance Ohmmeter at $2850.00
The Megger DLRO2 (1012-280) Ducter Handheld 2A Low Resistance Ohmmeter is a tough, hand-held 2 Amp low resistance ohmmeter. It's designed to provide fast, accurate, repeatable measurements, even in electrically noisy locations. For the utility or industrial user, a high level of safety is provided with a CATIII 600 V/CATIV 300 V rating to IEC61010. In addition, the instrument can protect itself from inadvertent connections to up to 600 V without blowing a fuse, thereby avoiding essential time lost due to repairs or finding a replacement fuse.
When working outside, the IP54 rating ensures that neither rain nor dust will prevent testing.
The DLRO2 measures low resistance values across a wide range of applications, from railways and aircraft to the resistance of industry components.
Applications requiring long test leads are not a problem for the DLRO2 as it has a dedicated long lead test to optimize the output. The long test lead function is able to provide up to 1 A of test current into 4 ohms resistance. This makes the DLRO2, with its optional cable reel test leads, ideal for testing wind turbine and avionic lightning protection applications.
To allow testing of smaller inductive loads, the DLRO2 can apply 2 A for at least 15 seconds, made possible by the high-capacity built-in rechargeable batteries, together with a separate inductive load function. The batteries can be fully recharged in 2.5 hours, minimizing down time.
Note: The DLRO2 is not ATEX/intrinsically safe rated and must not be used in explosive gas environments.
New Difference Meter
The DLRO2 is also equipped with a new innovative feature called a 'difference' meter. This allows repetitive measurements to be easily compared with an initial reference measurement. The difference meter translates percentage difference to a needle/pointer movement to make it visually easy to see change. New reference measurements can be set at the push of a button.
DLRO2 keeps you testing and produces reliable measurements
To ensure the DLRO2 is always ready to test, the supplied fitted as standard AA rechargeable NiMH batteries can easily be swapped for non-rechargeable standard AA alkaline batteries to keep you testing.
The DLRO2 provides 1% accuracy with a focus on repeatability making it ideal for repeated quality tests in production environments.
Key Feachers of Megger DLRO2 Ducter Handheld 2A Low Resistance Ohmmeter
- Measures low resistance up to 2000 Ω with 1 µΩ resolution
- Convenient handheld design ideal for tight spaces and locations with difficult access
- Intuitive operation with backlit color display
- Difference meter feature allows for quick data comparisons
- Dedicated long test lead mode optimizes testing peformance with very long test leads
- Safely tests resistance of inductive loads at 1A
- Protected to 600V live voltage connection without blowing a fuse
- Ideal for outdoor use with protection against dust and moisture to IP54
- Industry standard safety rated at CATIII 600V / CATIV 300V
- Equipped with rotary dial for easy function selection
- Performs tests in bidirectional mode or in unidirectional mode to save time and battery power
- Ideal for 3-phase applications with ability to display three test results at same time
- High level of noise immunity supports stability of results
- Full charge provides power for up to 500 3-second 2A tests
- Supplied with compact CATIII 600V / CATIV 300V rated kelvin clip test leads
